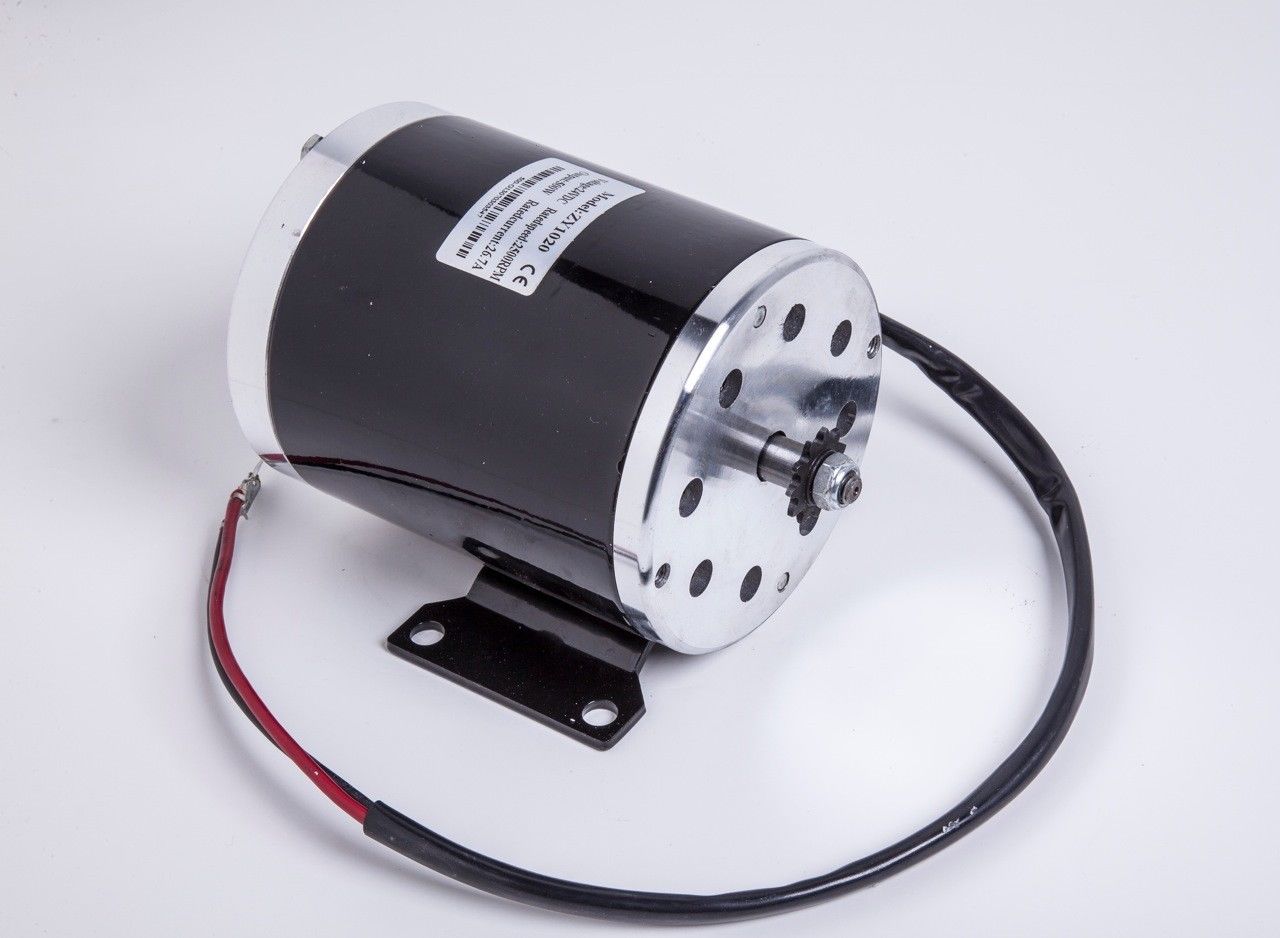

24 Volt 500 Watt MY1020 Electric Motor with 11 Tooth #25 Chain Sprocket

Purchased from eBay for $50 (August 2014) with this description/specs: New MY1020 type replacement motor with mounting bracket for electric scooter, mini bike quad and Go-Kart.

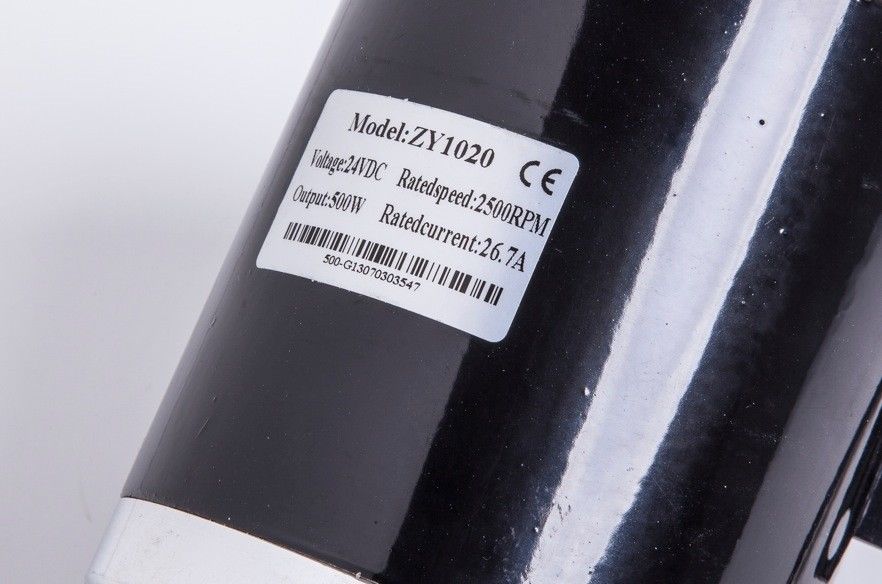

Specs:

• 24V DC
• Max 500 Watt, 26.7 amps
• Max 2500 RPM
• Chain drive (11 teeth sprocket) #25 chain 6.35 pitch
• Type of motor: DC, Brush
• Reversible
• 12 gauge leads
• Permanent Magnet

Dimensions:

• Diameter: 4 1/4“
• Length (no shaft): 5 1/4”
• Length (with shaft): 6 1/4“

This motor should work with some Xtreme or Razor electric scooter, mini bike or go-kart using a 500W motor. Should also work with any other brand with similar specs in motor Please check connector type and motor size and specs. before buying as replacement.
